Freeze Dryer
- Save Energy consumption: per batch 8-12 Kw.h
- Food preservation up to 25 years
- 97% nutrition retention
- Fresh food per batch up to 15 lbs (7 kg)
- Keep the original flavor and look
- Used widely,such as meat, fish, dairy, eggs, ice cream, cooked meals
- Smart control and easy operation
The freeze dryer conducts freeze-drying treatment on substances containing a large amount of water, such as food, pharmaceuticals, biological products, etc. It can extend the shelf life of food, retain its nutritional components and flavor, and maintain the good shape and rehydration performance of food. The freeze-dried fruits have a bright appearance color and a crispy taste, which is far better than the effect of ordinary drying.
Almost any food can be freeze-dried, including meat, cheese, fruit, vegetables and dairy products. Whole meals can also be freeze dried for short or long term storage. Fruit is ideal for freeze-drying. It is delicious and easy to prepare. From apples to watermelons, all you need to do is cut them into good-sized pieces that will fit on the trays.
Preserve your garden produce, create the perfect emergency food supply, make camping meals and healthy nacks. Unlike other methods of food preservation, freeze drying does not shrink or toughen the food, and retains flavor, color, and nutrition.
Small Size with Bigger Capacity

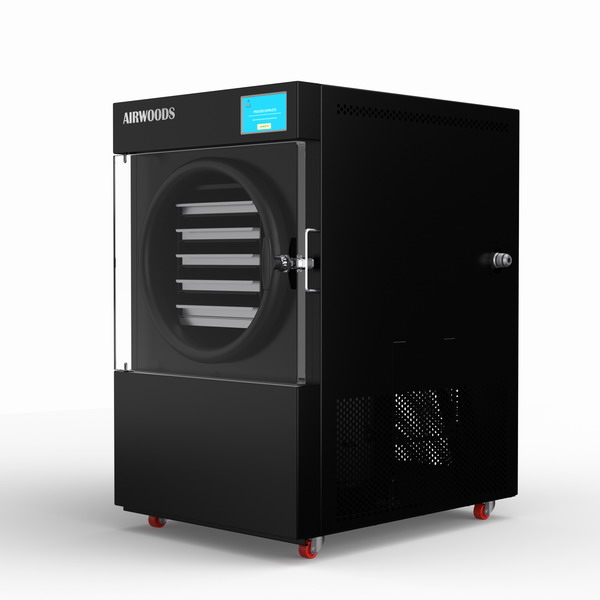

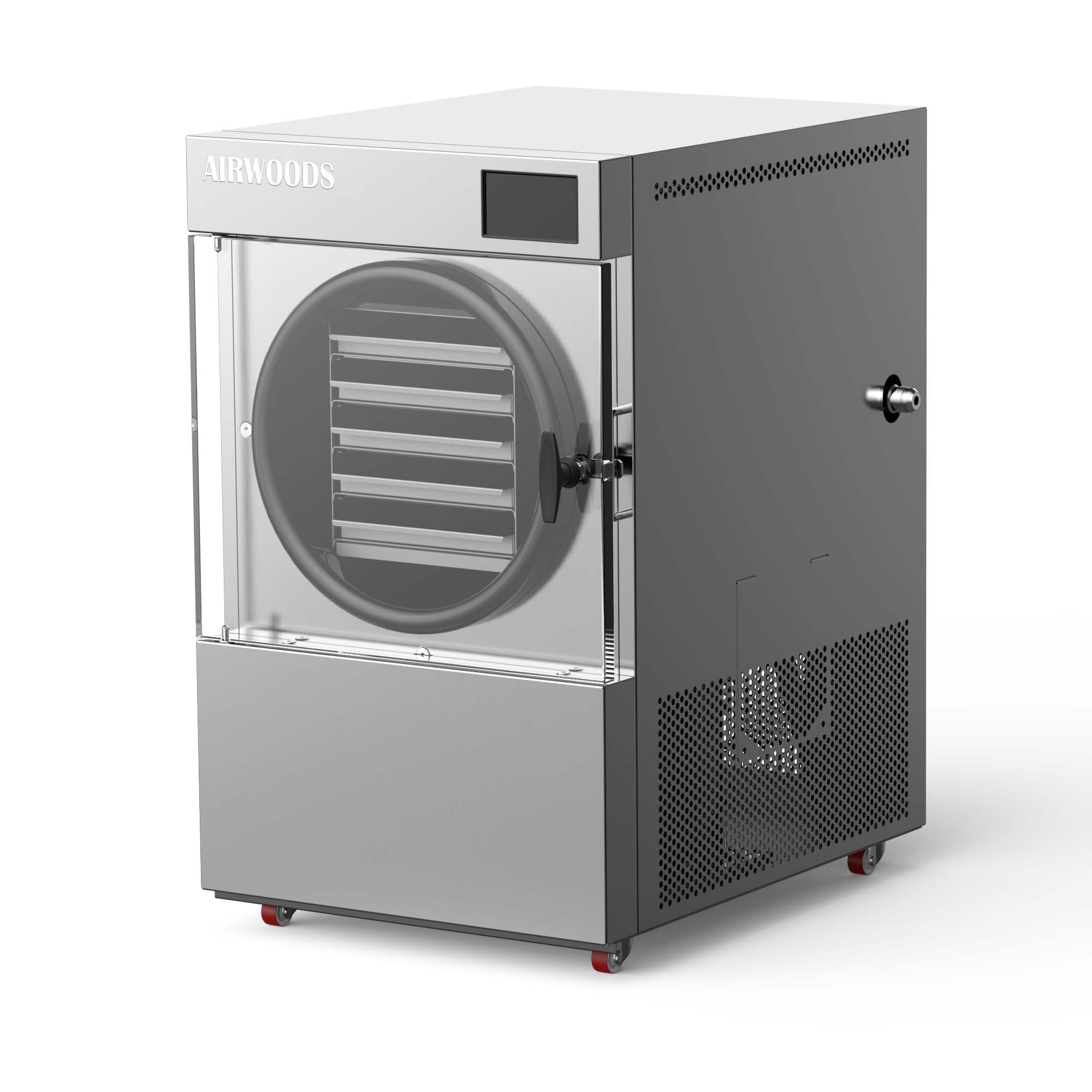

The Airwoods Freeze Dryer has an elegant design with smaller size. There are five trays with a surface area of 0.44 m2. It has a bigger freeze drying capacity of 15.5%, less drying time of 15% and less energy consumption of 15%.
Smart Control

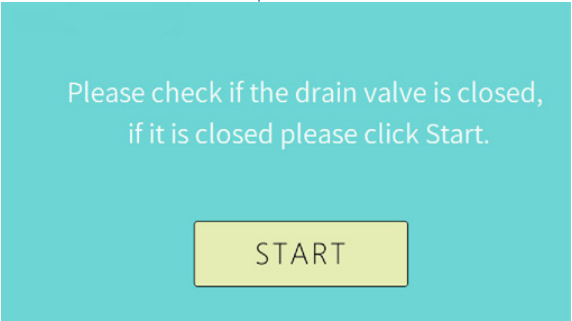

User friendly touch screen control, easy to use. All freeze drying processes run automatically with the intelligent control logic based on the detected temperature and pressure sensors in the freeze hamber. It has very smart functions like power failure memory function, exhaust valve not closed reminder or vacuum oil change reminder.
Reliable High Vacuum Electronic Component
Freeze-drying vacuum is less than 10 Pa, while other competitor is above 26 Pa. The high vacuum design reduces freeze-drying time and improves drying efficiency. There are many high vacuum electronic components inside the unit to make sure the reliable performance, such as the self- developed high vacuum joints, special vacuum sensors, food-grade high-strength freeze-drying chamber, etc.
Multifunctional Door Hinge
The Multifunctional door hinge is patented design with full functionality and high structural strength. The hinge can adjust the front to back distance for door installation, and the special slot can avoid the sway of the door hinge.
High Quality Compressor
Main components from the world’s leading brand such as Cubigel compressor and upgraded electronics enhance reliability. In addition, the quality of freeze-dried food is better and processing is faster.
Industrial Pump
At no extra charge, the units come with a famous brand industrial vacuum pump that is better and more reliable than any other pump out there. The specially designed oil filter pot included in each package increases the number of vacuum oil cycles, saving time and money for oil changing.
Compact and Robust Design
The top and side panels are integrated into a U-shaped design, making the structure more robust. The integrated design is aesthetically pleasing and seamless. Adoption of top quality insulating materials and sealing design can avoid unnecessary loss of energy.
Patented Exquisite Appearance
Exquisite patented design and professional modular structure, three independent functional areas, and an exquisite appearance for home kitchen appliances.
NUTRITION

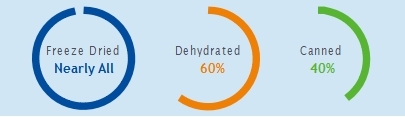

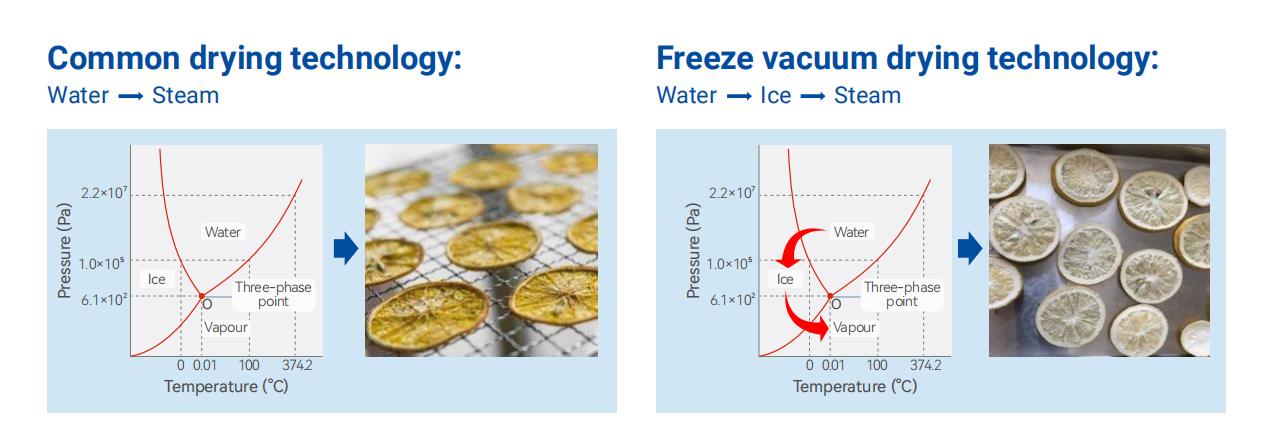

Freezing at -50°C, vacuum drying below 10pa, 97% nutrition retention. Traditional heat drying foods typically lose 40% to 50% of their essential nutrition during heating and about 40% of their nutrition retain during canning.

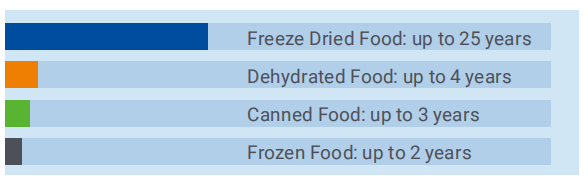

SHELF LIFE
Refrigerated, frozen and canned foods simply don’t last very long. Freeze- dried food can last up to 25 years and does not need to be rotated like other foods. Freeze-dried food is perfect for home storage.
TASTE
Freeze- dried fruits and vegetables taste the same as fresh fruits and vegetables after adding water, keep the original flavor and look. Airwoods freeze dryers produce food that looks and tastes better than store-bought freeze-dried food.
VERSATILITY
Freeze drying is great for fruits and vegetables, but unlike other options, it also perfectly preserved meat, fish, dairy, eggs, ice cream, and even fully cooked meals.
Save and easy

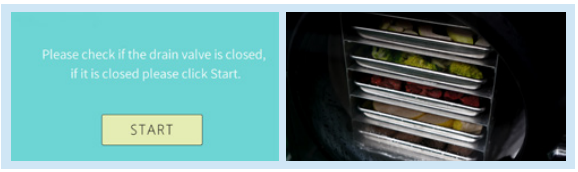

The food you freeze dry at home is much less expensive than store- bought, you also freeze dry all your leftover meals. Place the food in the chamber, press START, and smart sensors will detect the water content of the food and run automatically. The freeze-drying process is complete when you hear a beep.
Technical Data
Model | AW-FDMSA/AW-FDMBKA/AW-FDMWHA | AW-FDLSSA/AW-FDLBKA/AW-FDLWHA |
Colour | Stainless steel/Black/White | Stainless steel/Black/White |
Tray Dimensions(WxHxL) | 7.5’x18’x0.75’/195mm x 460mm x 20mm | 10.6’x30’x0.83’/270mm x 760mm x 21mm |
Tray Quantity (pcs) | 5 | 7 |
Freeze-drying Area | 0.45m² | 1.43m² |
Layer Space of Shelf | 44mm | 48mm |
Compressor Brand | Cubigel | Cubigel |
Climate Class | SN/N/ST | SN/N/ST |
Rated Voltage/Frequency | 220V/50-60hz or 110/60HZ | 220V/50-60hz |
Rated Power (W) | 1400 | 3100 |
Rated Current (A) | 10 | 15 |
Foaming Agent | Cyclopentane | Cyclopentane |
Energy Consumption (kwh/24h) | 9.33 | 24 |
Total Gross Volume (L) | 44 | 155.7 |
Refrigerant/Amount | R410A/225g | R410A/360g |
Freezing Capacity (kg/24h) | 7 | 20 |
Freezing Ability (once) | 4-9kg | 12-20kg |
Net Weight (kg) | 60 | 80 |
Noise (db) | 65 | 65 |
Product Dimensions(mm) (WxDxH) | 595x458x785 | 618x914x979 |

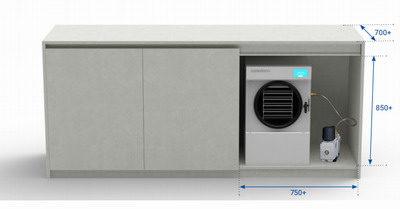

Installation Cases
