R32 Mini Swimming pool Heat Pump
- Kolant Swimming Pool Heat Pumps have wide range Including Residential series and commercial series Swimming Pool Heat Pumps
- High efficient, reliable, durable
- Rust free casing
- Titanium tub-shell Heat Exchanger
- Smart Wifi Control
- Modbus protocol built inside
KOLANT swimming pool heat pumps make use of the renewable energy stored in the ambient air and transfer it to useful energy at the cost of very little electricity consumption. This innovative technology makes the efficiency of KOLANT swimming pool heat pumps more than 5 times of traditional electric heating devices.
How much can you save?
Note:
Energy price calculated according to 2017 price of French.
Data source from Eurostat
Kolant Heat pump MORE saving than other devices
| Heating devices | Heat pump | Gas | Diesel | Electricity |
|---|---|---|---|---|
| Calorific value | 860kcal/kW·h | 860kcal/kW·h | 10200kcal/L | 860kcal/kW·h |
| Energy price | 0.167€ | 0.071€ | 1.61€ | 0.167€ |
| Heating Load | 9kW | 9kW | 9kW | 9kW |
| Efficiency | 500% | 85% | 85% | 95% |
| Energy consumption per day (24h continuous running) | 43.2 kWh | 254.12 kW·h | 21.43L | 227.37 kW·h |
| Operating cost per day (24h) | 7.21€ | 18.04€ | 34.50€ | 37.97€ |

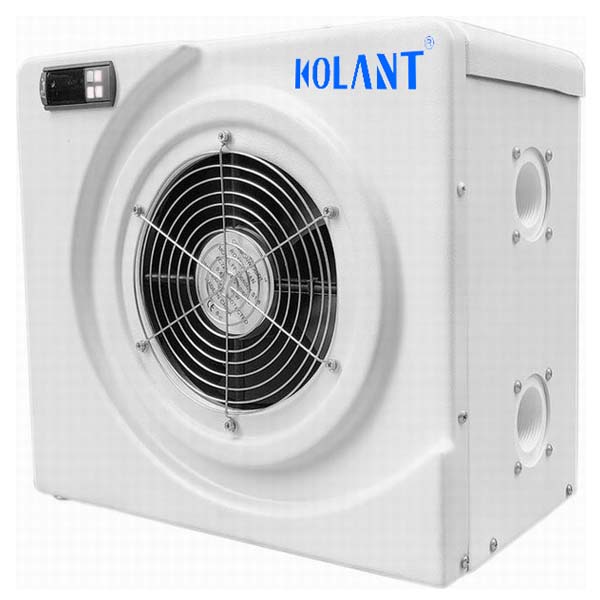

Rust free casing, streamlined profile
The plastic streamlined casing suits for most areas, especially for coastal areas, the excellent rust free material has obvious advantages than metal casing. Besides plastic casing, we also provide metal casing for mainland area as option
Titanium tube-shell condenser
The condenser is specially designed for direct heat exchange with pool water, this helps to simplify the water system (no need for an additional intermediate heat exchanger) and reduce the equipment investment. The titanium pipe and the plastic shell of the condenser make sure corrosion free in any cases.
Reliable, low maintenance rate
KOLANT exported thousands of swimming pool heat pumps every year. Our
swimming pool heat pumps kept a very low maintenance rate in the last 15 years. We
choose world famous brand compressor as well as leading brand components to
make sure the reliability and lifetime.
Smart WIFI control
By our new inovative technologies, it is possible for you to control your heat pump anytime, anywhere just via your mobile phone. Just imagine to turn on your heat pump on the other side of the earth, and then you can enjoy your swimming pool for relaxation as soon as you come back after a long trip, what a fantastic thing it is.
Joyful Swimming Through the Four Seasons with Less Cost
- Constant temperature comfort from 15 to 45 degrees Celsius to adjust the degree as you like
- Feel warm even in cool winter, nothing can Stop my swimming.
- High quality components, long lifetime
Technical Data
| Model | RJ-28R/N8-MIE | RJ-40R/N8-MIE | ||
| Air 28°C /Water 28 °C | Heating Capacity | W | 2850 | 3850 |
| BTU | 9719 | 13129 | ||
| Heating Input Power | W | 520 | 675 | |
| Heating Running Current | A | 2.40 | 3.01 | |
| COP | 5.48 | 5.7 | ||
| Max. Current | A | 3.6 | 4.5 | |
| Power Supply | V/Ph/Hz | 220-240V/1Ph/50Hz | 220-240V/1Ph/50Hz | |
| Setting temp. Range | 15°C~40°C | 15°C~40°C | ||
| Running Temp. Range | 7°C~43°C | 7°C~43°C | ||
| Refrigerent Type | R32 | R32 | ||
| Condenser | Titanium in PVC | Titanium in PVC | ||
| Evaporator | Hydrophilic aluminium/φ9.52 innergroove tube | Hydrophilic aluminium/φ9.52 innergroove tube | ||
| Capillary or Expansion Valve | Capillary | Capillary | ||
| Controller | LED | LED | ||
| Water Inlet/Outlst Dimension | “ | 1″ | 1″ | |
| Hydraulic Connection | mm | PVC 32 | PVC 32 | |
| Water Flow Volume | m³/h | 1.5 | 2.5 | |
| Sound Pressure Level at 1M/4M/10M | kpa | 51/38/30 | 53/39/32 | |
| Dimension | L*W*H | mm | 411*250*376 | 411*250*376 |
| Packing Size | L*W*H | mm | 475*290*445 | 475*290*445 |
| Weight | Net Weight | kg | 25 | 28 |
| Gross Weight | 28 | 31 | ||
