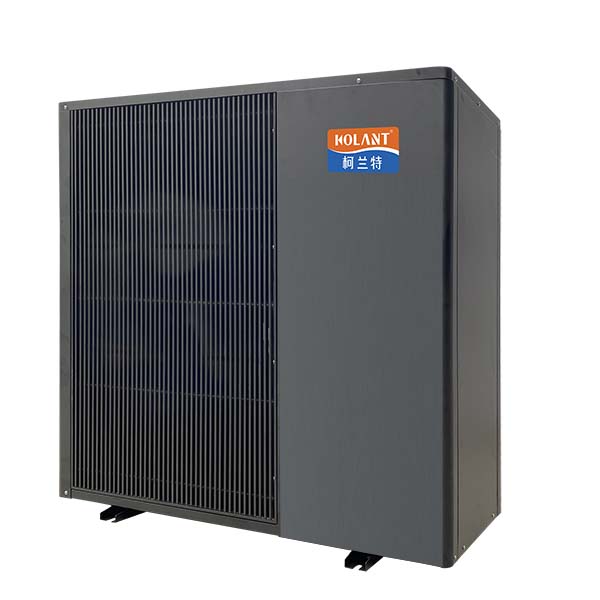

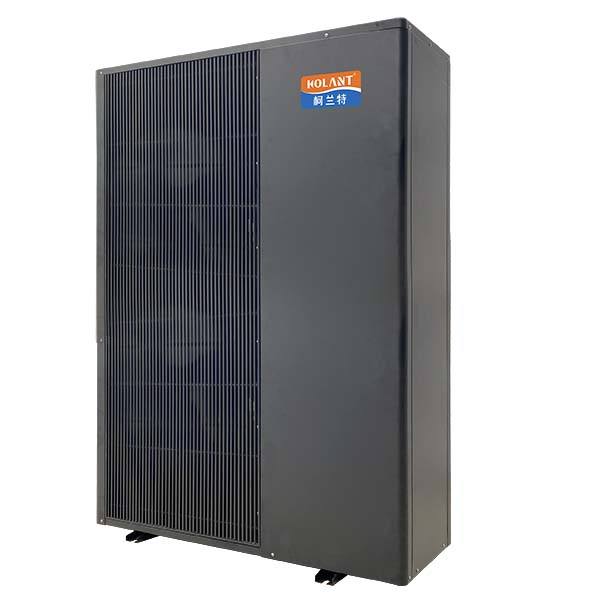

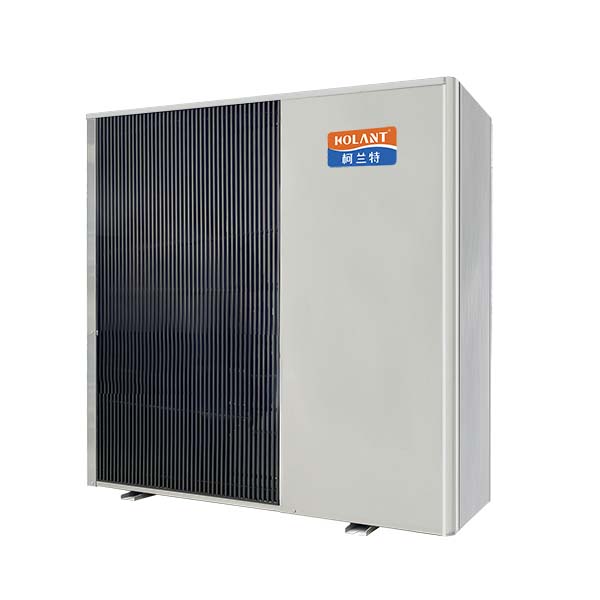

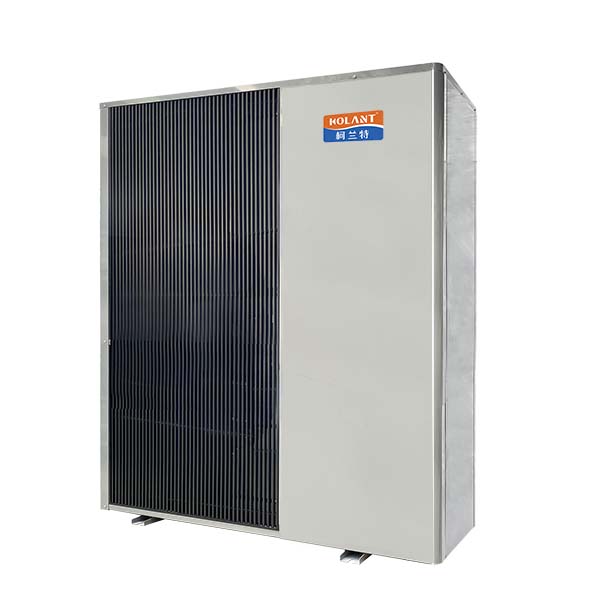

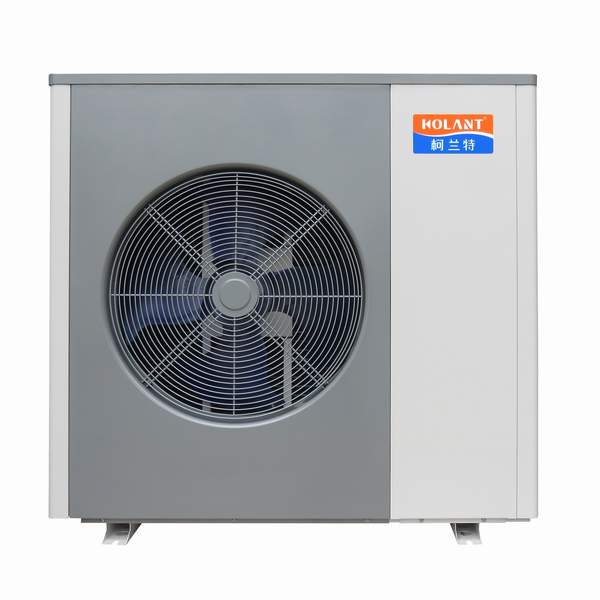

R290 Inverter Heating Cooling Heat Pump
- KOLANT DC inverter multifunctional heat pump provide Heating, Cooling + Domestic Hot Water in one solution.
- Max. 75°C outlet water, the best replacement for boiler.
- Working Range Ambient temp -35°C.
- Compatible with Solar thermal, Solar PV
- Enery Class A+++ with R290 refrigerant
- With Wifi control function
- Modbus control protocol with RS485 interface
- Silent Noise 55 dBa
The Kolant R290 heat pump stands out as a remarkable appliance that offers a comprehensive solution for modern living. It seamlessly combines heating, cooling, and domestic hot water functions, making it an all – in – one device for homes and small commercial spaces. This versatility not only simplifies the installation and operation but also saves valuable space.
Kolant R290 Heat pump Polar Series attains an impressive EU Energy Efficiency rating of A+++ at 35℃ water temperature and A++ at 55℃ water temperature.
This ensures users not only enjoy enhanced performance but also experience cost savings through a more economical choice.
Kolant Natural Eco Refrigerant R290(GWP=3)
Environmental-friendly is always the primary goal of our company, Kolant PolarHeat heat pump operates on R290, a natural cooling medium consisting of propane. This choice is driven by its negligible impact on Ozone Depletion Potential (ODP) and minimal Global Warming Potential (GWP), aligning with the EU’s carbon neutrality objectives.Leveraging the exceptional thermodynamic properties of R290 alongside our cutting-edge heat pump technology, Kolant R290 Heat heat pump delivers outstanding performance, even in the most frigid conditions.
By integrating ecological considerations with economic efficiency, Kolant R290 heat pump is a step towards a greener future without compromising on comfort and functionality.

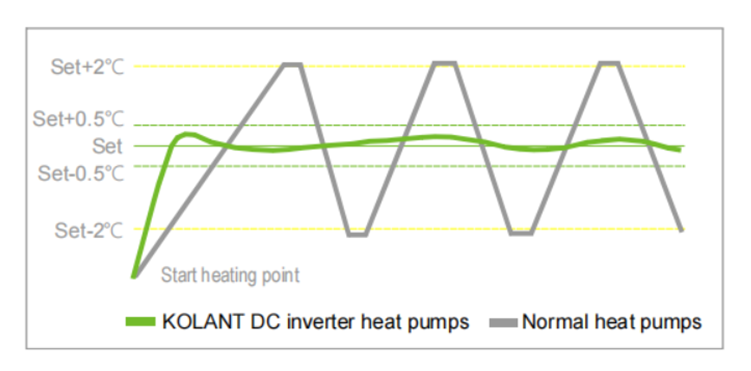

Comfortable feeling with accurate control
KOLANT R290 DC inverter heat pump Can regulate its own heating capacity from 20% to 100% according to the actual heat requirement. In this way, the water system water temperature can be steadily controlled with a very small deviation of 0.5℃, so as to create a comfortable feeling for end users in home.

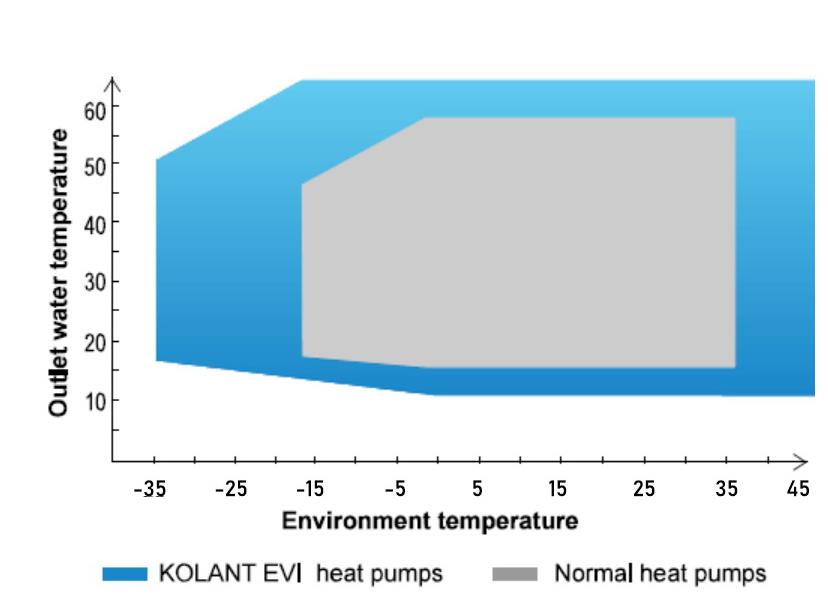

Kolant heat pump working range ambient temperature -35℃
KOLANT R290 DC inverter heat pump can work under environment temperature -35℃
Getting much higher water temperature during low environment temperature
Heating capacity 40%~60% higher than normal heat pumps,
COP 10%-20% higher than other heat pumps.

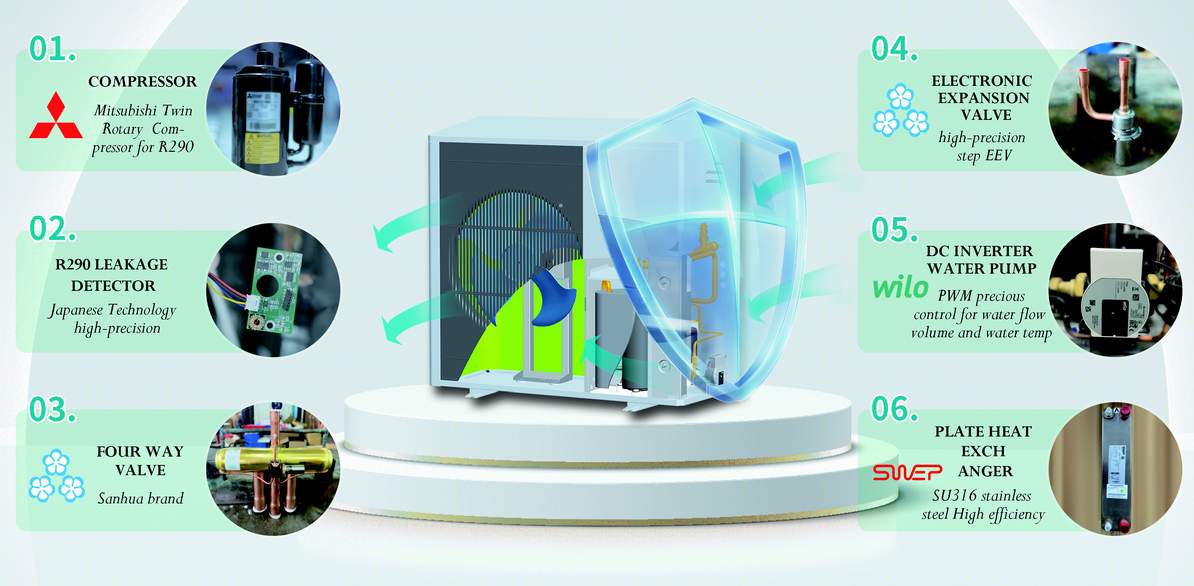

High Reliablity And Safety thank to the High Quality and Long Lifetime Components
All the key components are from leading suppliers to make sure the quality and lifetime.
The Intelligent Bottom PositiveVentilation design incorporates a large fan to effectively ventilate any potential R290 leakage.
Built inside Special R290 leakage sensor to give warning at any r290 leakage to protect the user and heat pump.
Special Explosion-proof design including Hermetic electric control box, Excellent sealability.
Smart Intergration
SG Ready
Kolant PolarHeat SG Ready heat pump are a great way to address the challenge of balanc- ing energy supply and demand, considering the rise in global energy consumption, and ensure you enjoy the comfort of your building by covering your heating needs.
PV Ready
Equipped with PV readiness,Kolant Polar- Heat heat pump can seamlessly integrate with PV systems,directly utilizing solar-generated electricity,optimizing the utilization of energy derived from PV sources.”
European Standard Seasonal COP Energy Class A+++
Kolant PolarHeat R290 Series attains EU Energy Efficie ncy rating of A+++ at 35℃ water temperature and A++ at 55℃ water temperature.

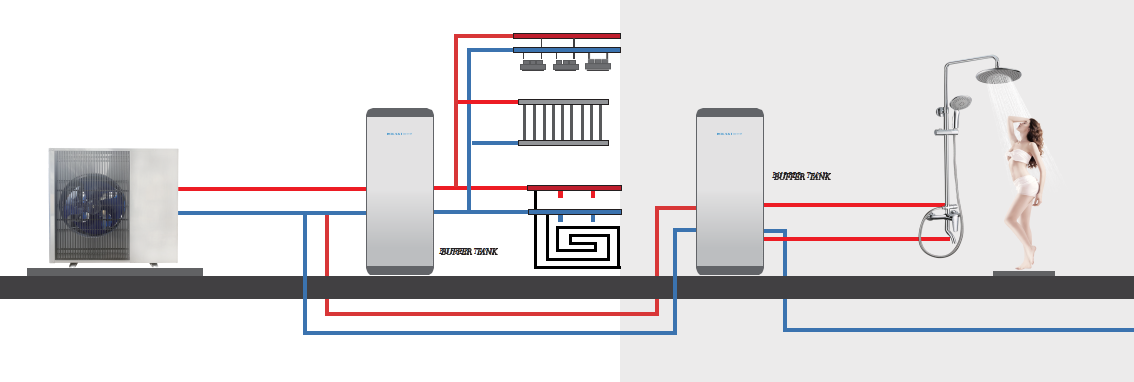

Heating/cooling+DHW Funtion In One Solution
Kolant Polar heat pump is multifunctional heat pump which can satisfy Space Heating, cooling and domestic water heating of the whole family demand in one solution.This ensures usersnot only enjoy enhanced performance but also experience cost savings through a more economical choice.
Powerful heating in -35°C winter
In extremely cold conditions, conventional heat pumps face limitations in performance,like heating capacity diminishes,However, Kolant PolarHeat heat pump stands out by efficiently operating at temperatures as low as -35°C, maintaining a high Coeffcient of Performance (COP),and ensuring reliable stability..

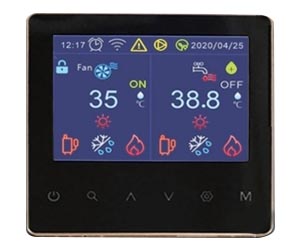

Intelligent touch screen controller
Colorful screen controller Intuitive interfaceTouch-key design
Wifi module inside Modbus protocol.Mobile APP remote control .
Easy setting Monitor unit status and energy consumption.

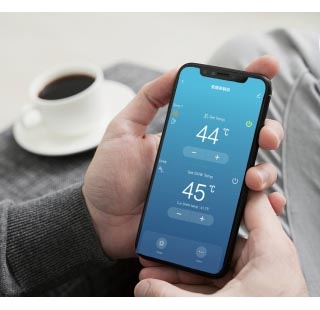

Remote control with Wifi APP
By downloading our APP in your mobile phone, it is possible for you to conveniently control a DC inverter heat pump from KOLANT at any time, anywhere. Just imagine that you turn on your heat pump and set it to a comfortable temperature before you leave office, then you will enjoy the pleasant environment as soon as you get home
Technical Data
| Model name | RJ(P)-80H/N9-BPR | RJ(P)-120H/N9-BPR | RJ(P)-150H/N9-BPR | RJ(P)-180H/SN9-BPR | RJ(P)-160H/SN9-BPR | RJ-220H/SN9-BPR | ||
| Power supply | V / Ph / H | 220V / 50Hz | 380V/50Hz | |||||
| Heating A 7/6℃ W 30/35℃ | Capacity | kW | 8.00 | 12.00 | 15.20 | 18.00 | 16.00 | 22.00 |
| Rated input | kW | 1.63 | 2.49 | 3.05 | 3.74 | 3.31 | 4.55 | |
| COP | 4.89 | 4.82 | 5.10 | 4.81 | 4.83 | 4.83 | ||
| Heating A -20/-℃ W 30/35℃ | Capacity | kW | 5.00 | 7.50 | 9.50 | 11.20 | 10.00 | 13.80 |
| Rated input | kW | 2.12 | 3.23 | 3.83 | 4.85 | 4.18 | 5.82 | |
| COP | 2.36 | 2.32 | 2.48 | 2.31 | 2.39 | 2.37 | ||
| Cooling A35/24℃ W 23/18℃ | Capacity | kW | 8.00 | 12.00 | 15.00 | 18.00 | 16.00 | 22.00 |
| Rated input | kW | 1.89 | 2.80 | 3.47 | 4.85 | 3.88 | 5.26 | |
| EER | 4.22 | 4.31 | 4.32 | 3.71 | 4.12 | 4.18 | ||
| Seasonal space heating energy efficiency class | LWT at 35℃ | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | |
| LWT at 55℃ | A++ | A++ | A++ | A++ | A++ | A++ | ||
| SCOP | LWT at 35℃ | 4.50 | 4.68 | 4.75 | 4.68 | 4.68 | 4.50 | |
| LWT at 55℃ | 3.90 | 4.06 | 4.12 | 4.06 | 4.06 | 3.90 | ||
| SEER | LWT at 7℃ | 4.47 | 4.65 | 4.72 | 4.65 | 4.65 | 4.47 | |
| MOP(Maximum overcurrent protection) | A | 11.5 | 17.2 | 22.9 | 28.9 | 7.9 | 9.9 | |
| Water pressure drop | kPa | 50 | 50 | 50 | 50 | 50 | 50 | |
| Refrigerant | Type | R290 | ||||||
| GWP value | 3 | |||||||
| Equivalent CO2 | Ton | 0.0027 | 0.0036 | 0.0045 | 0.0048 | 0.0039 | 0.0048 | |
| Compressor | Type | DC inverter | ||||||
| Brand | MITSUBISHI | |||||||
| Air side heat exchanger | Material | Fin copper tube | ||||||
| Rows | 2 | 3 | 3 | 3 | 2 | 3 | ||
| Tube size | mm | Φ7 | Φ7 | Φ7 | Φ7 | Φ7 | Φ7 | |
| Fan motor | Fan type | Axial Fan | ||||||
| Motor type | Brushless DC motor | |||||||
| Motor Quantity | 1 | 1 | 1 | 1 | 2 | 2 | ||
| Speed | rpm | 300~850 | ||||||
| Throttle type | Electronic expansion valve | |||||||
| Water side heat-exchanger | High efficiency tank | |||||||
| Sound power level6 | dB | 45 | 46 | 48 | 50 | 48 | 50 | |
| Water resistance | IPX4 | |||||||
| Water pipe connection | Inlet | mm | DN25(1”) | DN25(1”) | DN25(1”) | DN25(1”) | DN25(1”) | DN25(1”) |
| Outlet | mm | DN25(1”) | DN25(1”) | DN25(1”) | DN25(1”) | DN25(1”) | DN25(1”) | |
| Net/Gross weight | Net | kg | 68 | 75 | 98 | 108 | 98 | 108 |
| Dimension (L×H×D) | Net | mm | 1115×425×905mm | 1115×425×905mm | 1115×425×1075mm | 1115×425×1075mm | 1115×425×1408mm | 1115×425×1408mm |
| Packing | mm | 1135×490×1063mm | 1135×490×1063mm | 1135×490×1233mm | 1135×490×1233mm | 1135×490×1566mm | 1135×490×1566mm | |
| Operating temperature | Cooling | ℃ | – 5 to 43 | |||||
| Heating | ℃ | – 30 to 35 | ||||||
| DHW | ℃ | -30 to 43 | ||||||
