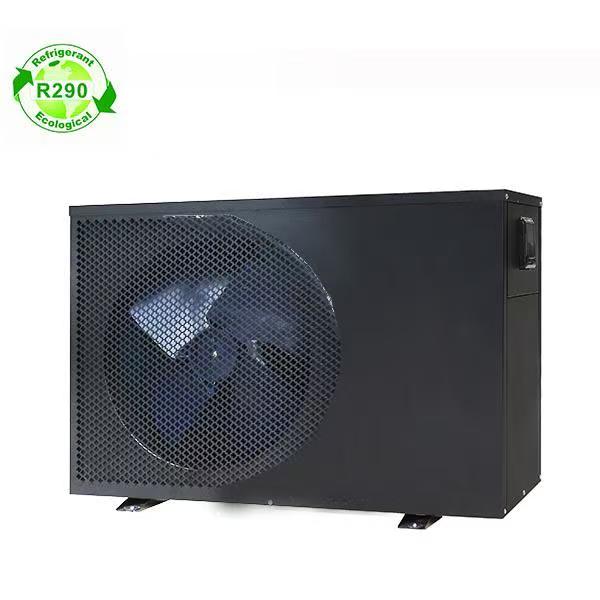

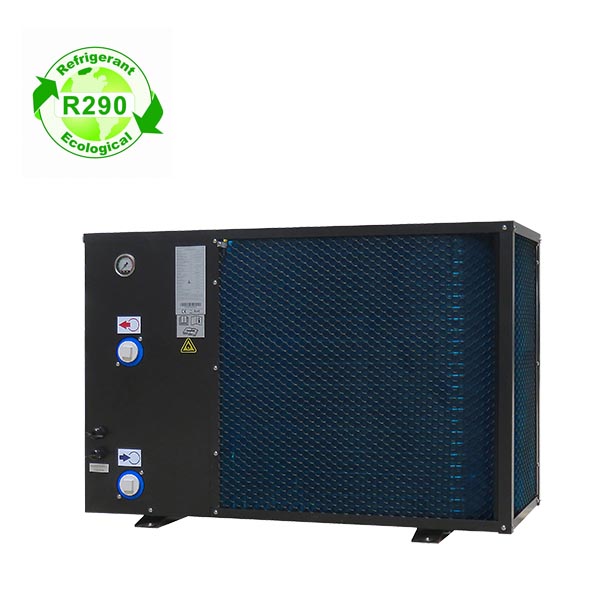

R290 Swimming pool Residential series Heat Pump

R290 echo refrigerant
High efficient, reliable, durable
Rust free casing
Titanium tub-shell Heat Exchanger
Smart Wifi Control
Modbus protocol built inside

KOLANT swimming pool heat pumps make use of the renewable energy stored in the ambient air and transfer it to useful energy at the cost of very little electricity consumption. This innovative technology makes the efficiency of KOLANT swimming pool heat pumps more than 5 times of traditional electric heating devices.

How much can you save?

Note:
Energy price calculated according to 2017 price of French.
Data source from Eurostat

Kolant Heat pump MORE saving than other devices

Heating devices	Heat pump	Gas	Diesel	Electricity
Calorific value	860kcal/kW·h	860kcal/kW·h	10200kcal/L	860kcal/kW·h
Energy price	0.167€	0.071€	1.61€	0.167€
Heating Load	9kW	9kW	9kW	9kW
Efficiency	500%	85%	85%	95%
Energy consumption per day (24h continuous running)	43.2 kWh	254.12 kW·h	21.43L	227.37 kW·h
Operating cost per day (24h)	7.21€	18.04€	34.50€	37.97€

Kolant Pool Heat Pump Advantage

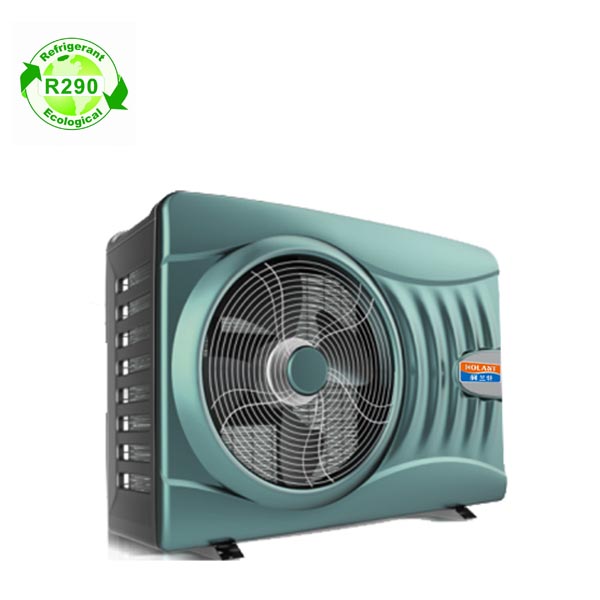

Rust free casing, streamlined profile

The plastic streamlined casing suits for most areas, especially for coastal areas, the excellent rust free material has obvious advantages than metal casing. Besides plastic casing, we also provide metal casing for mainland area as option

Titanium tube-shell condenser

The condenser is specially designed for direct heat exchange with pool water, this helps to simplify the water system (no need for an additional intermediate heat exchanger) and reduce the equipment investment. The titanium pipe and the plastic shell of the condenser make sure corrosion free in any cases.

Reliable, low maintenance rate

KOLANT exported thousands of swimming pool heat pumps every year. Our
swimming pool heat pumps kept a very low maintenance rate in the last 15 years. We
choose world famous brand compressor as well as leading brand components to
make sure the reliability and lifetime.

Smart WIFI control

By our new inovative technologies, it is possible for you to control your heat pump anytime, anywhere just via your mobile phone. Just imagine to turn on your heat pump on the other side of the earth, and then you can enjoy your swimming pool for relaxation as soon as you come back after a long trip, what a fantastic thing it is.

Kolant Heat Pump Benefits for you

Joyful Swimming Through the Four Seasons with Less Cost

Constant temperature comfort from 15 to 45 degrees Celsius to adjust the degree as you like
Feel warm even in cool winter, nothing can Stop my swimming.
High quality components, long lifetime

Technical Data

Model		70N9-IVSQ	100N9-IVSQ	120N9-IVSQ	150N9-IVSQ	240N9-IVSQ	240SN9-IVSQ
Air 28/25.3°C water 28°C 80%HR	Capacity in Boost Mode (W)	7611	10967	13637	18428	25621	26560
	Input capacity	1581	1924	2510	3606	4555	4628
	COP	4.81	5.7	5.43	5.11	5.63	5.75
Air 15/12°C water 26°C 70%HR	Capacity in Boost Mode (W)	5737	7355	10327	13420	19697	20026
	Input capacity	1405	1733	2473	3246	4484	4402
	COP	4.08	4.25	4.18	4.14	4.39	4.55
Operating temperature		-15°C -> 43°C
Gas
Refrigerant		R290	R290	R290	R290	R290	R290
Equivalent CO2(kg)		6.40	7.60	9.00	10.00	16.00	16.00
Installation
Water connection		1,5″/50 mm
Power		230 V / 1~+N / 50 Hz					400 V / 3~+N / 50 Hz
Current Normal (Max)		6,9A(10A)	8,4A(10A)	11,5 A (15,3 A)	14,3 A (16A)	31,5 A (35,0 A)	10,0 A (16 A)
Protection and cable size (20 meters)		C 16 A (3G 2.5 mm²)	C 16 A (3G 2.5 mm²)	C 20 A (3G 4 mm²)	C 20 A (3G 4 mm²)	C 40 A (3G 6 mm²)	3P+N C 20 ( 5G 2,5 mm²)
Maximum absorbed power		2.2kW	2.2kW	3.4 kW	4.1 kW	6.0 kW	6.0 kW
Power absorbed during standby mode		8.5W	8.9W	9.2 W	12.1 W	14.1 W	14.1 W
Water flow necessary		3 m³/h	4 m³/h	5 m³/h	6 m³/h	10 m³/h	10 m³/h
Water pressure drop		20 kPa	25 kPa	30 kPa	40 kPa	60 kPa	60 kPa
Max.operation pressure (High side)		42 bar	42 bar	42 bar	42 bar	42 bar	42 bar
Dimensions (L x l x h)		980 x 411 x 609 mm		1080 x 474 x 715 mm		1178 x 518 x 872 mm
Net/gross weight		46 kg (58 kg)	49 kg (59 kg)	62 kg (72 kg)	63 kg (80 kg)	94 kg (111 kg)	94 kg (111 kg)
