Ultra-thin Exposed Fan Coil Unit

ultra-thin 18cm

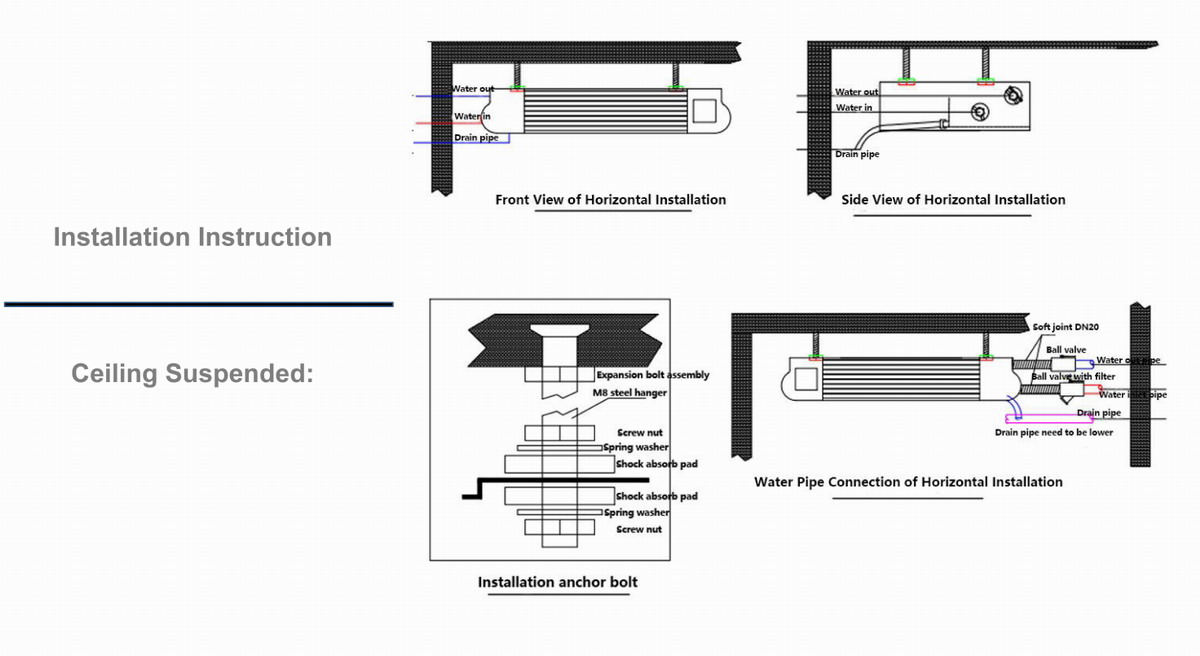

ceiling suspended, wall mounted or floor standing
low noise

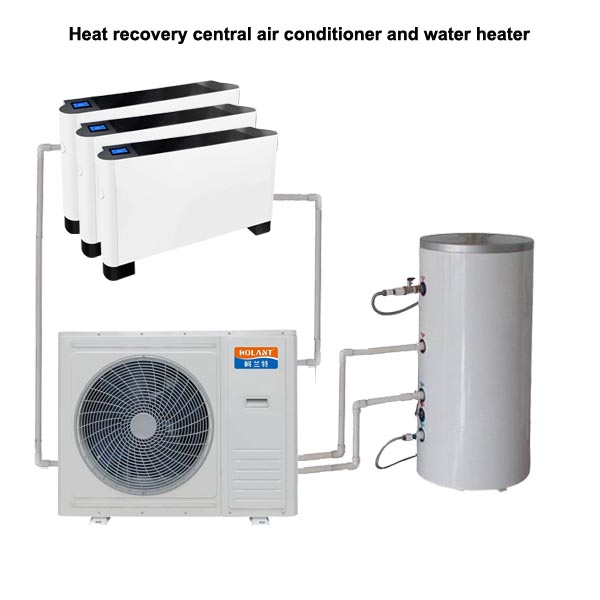

connected with heat pump

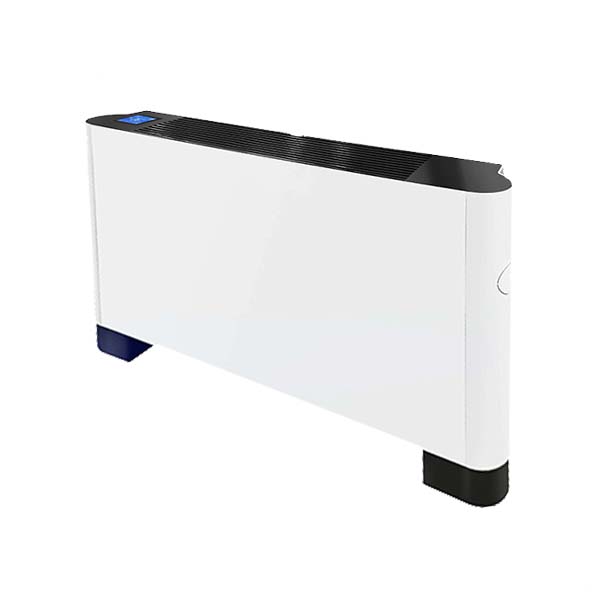

This is our new developed ultra-thin exposed fan coil unit, only about 18cm thickness, but at the same time ensured the good performance of the cooling and heating. What’s more, the kind of ultra-thin fan coil unit have the low noise and can be ceiling suspended, wall mounted or floor standing,which is suitable for home use and other place. Now the thickness of exposed fan coil unit on the current market is 25.5cm, 24.5cm or 24cm. Now our slim exposed fan coil unit is about 6 cm thinner.

Work principle

The function of fan coil unit is to send indoor air or outdoor mixed air into the room after cooling or heating through the coil, so as to reduce or increase the indoor temperature,so as to meet the comfort requirements of people.The cold(hot) water in the coil is supplied by the heat pump or chiller.

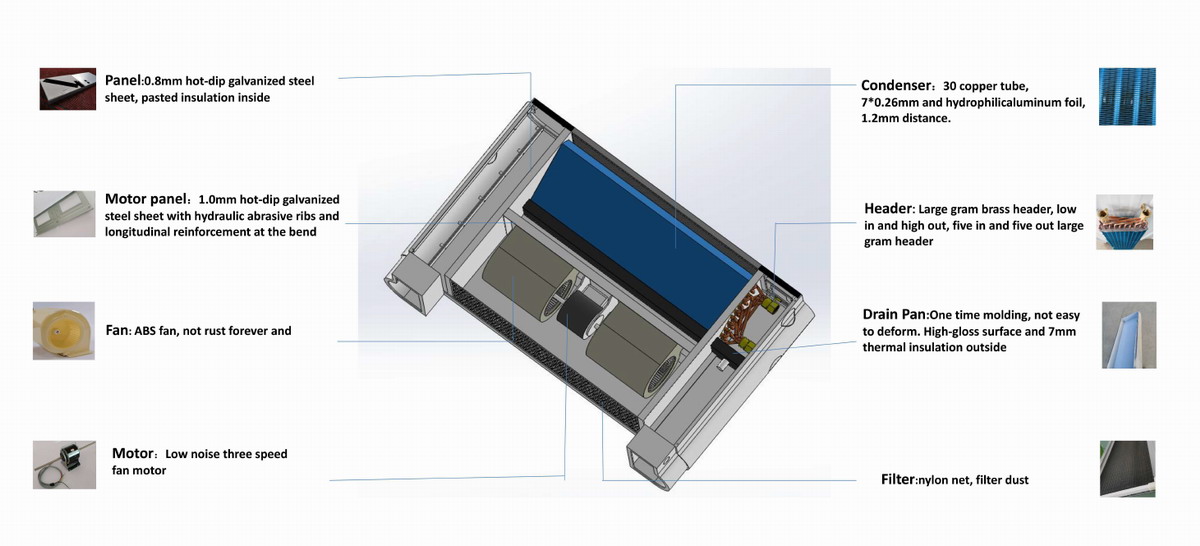

Shell

Condenser section

0.8mm oil free and flowless hot dip galvanized steel plate, raw material ABS material panel, never change color.

Fan section

1.0mm oil free and flowerless hot dip galvanized steel plate, stiffening process, increase motor stability.

Fan

Fan motor section

Changzhou Liwen Motor (high, middle and low three speeds)

Fan wheel section

ABS volute and large blade impeller, instant release surging air volume.

Condenser

Copper pipe

3 rows of 30 copper pipes, Ø7, thickness 0.28mm.

Aluminum foil

Hydrophilic aluminum foil, large window, spacing 1.3mm, thickness 0.105mm.

Drain pan

Type

0.8mm sheet metal high gloss spraying process, corrosion resistance, external paste 7mm thick rubber and plastic insulation.

Controler

Type

LCD temperature control, to the temperature automatically stop, below the set temperature automatically start

Spare parts

Good quality come from good spare parts

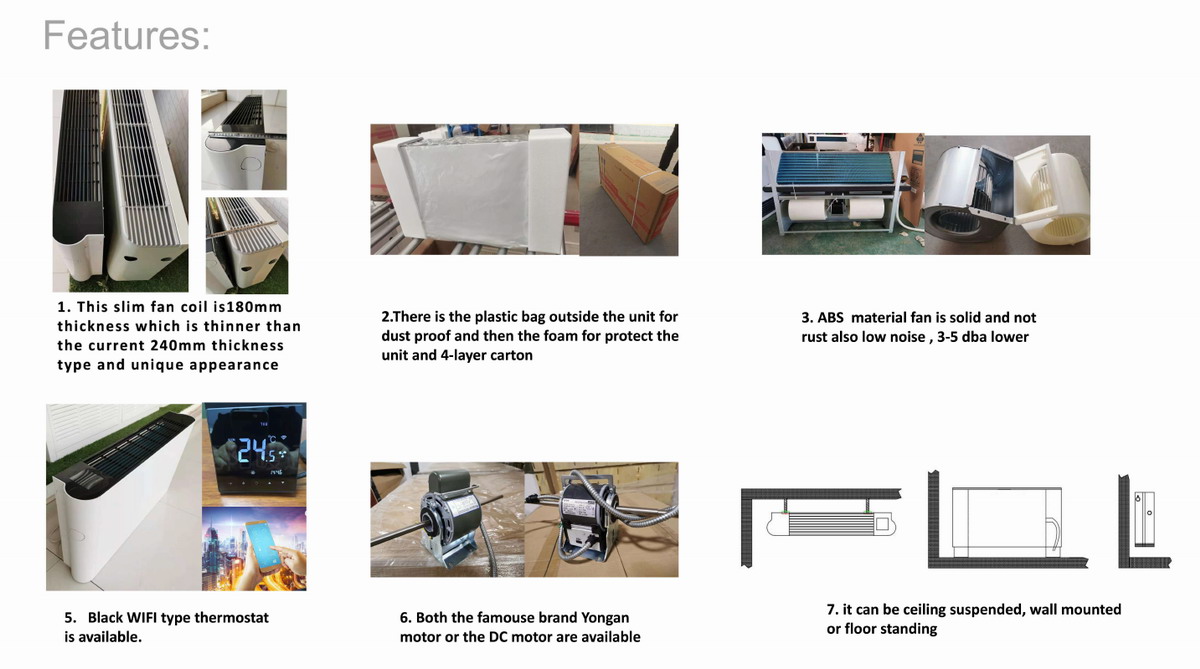

Features

Parameter of vertical (ceiling) type fan coil

Model HLF series		HLF-51	HLF-68	HLF-85	HLF-102	HLF-136	HLF-170	HLF-204
Air flow	m³/h	560	700	875	1045	1410	1790	2050
Coooling capacity	KW	3.2	4	4.8	5.8	7.4	9.3	11
Power input	W	12	12	25	25	50	80	80
Number of fan motor	Pc	1	1	1	1	2	2	2
Number of fan	Pc	1	2	2	2	3	4	4
Residual pressure	Pa	12Pa
Chilled water temp.	℃	7℃
Heating capacity	KW	4.8	5.92	7.15	8.7	11	13.95	16.4
Hot water temp.	℃	60℃
Noise	dB(A)	37	39	41	44	45	47	49
Length of condenser	mm	550	650	700	900	1050	1300	1500
Width of condenser	mm	46
Height of condenser	mm	210
Weight of unit	Kg	15	17.2	17.9	20.6	22.5	25.8	29
Dimension (LWH)	mm	920	1020	1070	1270	1420	1670	1870
	mm	180
	mm	650
