WALL MOUNTED ECO-FLEX ENERGY RECOVERY VENTILATOR
- Dual-duct airflow system
- 35 dB(A) Silent operation
- ECO FLEX ERV (5) F7 filter+Optional Negative Ion
- Automatic Bypass Optional
- Flexible Installation
- 90% efficiency heat exchanger core
Versatile Installation options Wall-Mounted Installation
It can be mounted on the wall with two holes of 120mm, one for fresh air and other for exhaust air. It can be installed completely from inside without the need for any scaffolding on high buildings.
Horizontal Installation
It can be mounted on the window or the hole reserved for the window type air conditioner. No need to drill holes on the wall.No impact on the external wall of the building.
High-Efficiency Heat Recovery
• Up to 90% heat recovery efficiency, ensuring comfortable indoor temperatures.
• Hexagonal heat exchanger core for optimized energy transfer.
• Minimizes temperature fluctuations between indoor and outdoor air
Quiet & Energy-Efficient
• Up to 90% heat recovery efficiency, ensuring comfortable indoor temperatures.
• Hexagonal heat exchanger core for optimized energy transfer.
• Minimizes temperature fluctuations between indoor and outdoor air
Smart Air Quality Control
• WiFi+ Remote Control, supporting smart home integration.
• Air quality monitoring (PM2.5/C02 optional)
• Auto Ventilation Mode, adjusting based on temperature differences
Fresh Air Revolution
- Up to 90% heat recovery efficiency, ensuring comfortable indoor temperatures.
- Hexagonal heat exchanger core for optimized energy transfer.
- Minimizes temperature fluctuations between indoor and outdoor air.

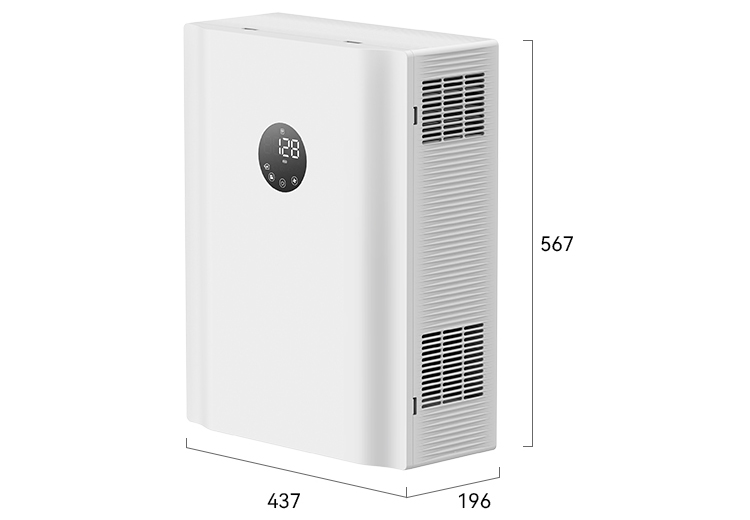

Product size
Technical Data
| Model No. | AV-TPM10/DFW |
| Rated Airlow (m3/h) | 60/80/100 |
| Airlow Under Sleep Mode (m3/h) | 40 |
| Temperature Efciency (%) | 75-90 |
| Enthalpy Efciency (heating) (%) | 67-75 |
| Enthalpy Efciency (cooling) (%) | 60-73 |
| Noise dB(A) | 35 |
| Input Power (W) | 25 |
| Product Size L*W*D(mm) | 567*437*196 |
| Power Supply | 110-220V/50-60HZ/1ph |
| N. W. (kg) | 10 |
| Diameter of Duct(mm) | 120 |
| Working temperature (°C) | -20~40 |
| Filter | Coarse filter + F7 filter |
| Control | Touch Screen Panel / Remote Control / WlFl Contro |
Installation Cases
